Unlike panels that may be strong in automation but weak in security (or vice versa), the M1 Gold boasts a rock solid security foundation with the most imaginative and powerful automation functionality available.
End users will welcome the quality and futuristic capabilities of the versatile keypad, voice telephone dialler and the built-in telephone remote. The 500+ word vocabulary pleas- antly announces system status, configurable in any sequence to alleviate user intimidation.
M1 offers the flexibility to integrate industry standard systems and components for easy upgrades and system expansion. In addition to the powerful digital dialler, the M1 has a built-in voice dialler, which can call any phone, on or off site, including a mobile phone. Remote telephone control capability allows you to perform tasks; such as, change the temperature setting, control the water heater, lower the garage door, set lighting scenes, arm/disarm the system, control sprinklers, and more by simply picking up the phone – any phone.
MAJOR FUNCTIONS WITH ACCESSORIES
COLOUR TOUCHSCREEN
Control security and automation functions such as arm/disarm, view event Logs, control lighting, view & adjust thermostats, activate tasks, turn devices on & off, make custom setting changes, access your favourite website, picture albums, music and other media all from the Ness superbright Colour 7” Touch Screen.
Up to 32 can be connected to an M1 system.
LAPTOP / PDA
Get total control of your entire system with easy to use installer’s and user’s management software.
Direct connect via serial port for fast installer access or connect via M1 Ethernet Interface and LAN for powerful user functions.
The versatile mobile PDA option provides unprecedented power and convenience in the palm of your hand.

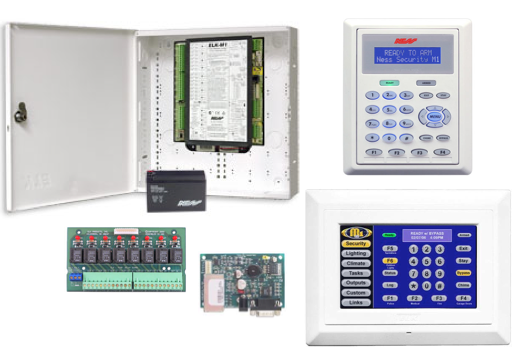

KEYPADS
Three Ness M1 keypads are available to provide choice for both the installer and the user.
The keypads have highly functional backlit keys with adjustable intensity and time/date display.
Up to 16 keypads can be installed on any M1 system. The Ness S/F keypad even has a recessing kit option for that extra flush look.
INTERNET INTERFACE
The Ness Ethernet Interface allows you to view a secure “virtual keypad” of your M1 system via an internet connection.
Log-in using an internet enabled computer and view, change, turn outputs on/off, arm/disarm from anywhere in the world. Also supports full programming of the system via Ethernet as well as email on events.
IR REMOTE CONTROL
IR integration to control any device that supports IR remote control, (air con, CD, DVD, TV etc).

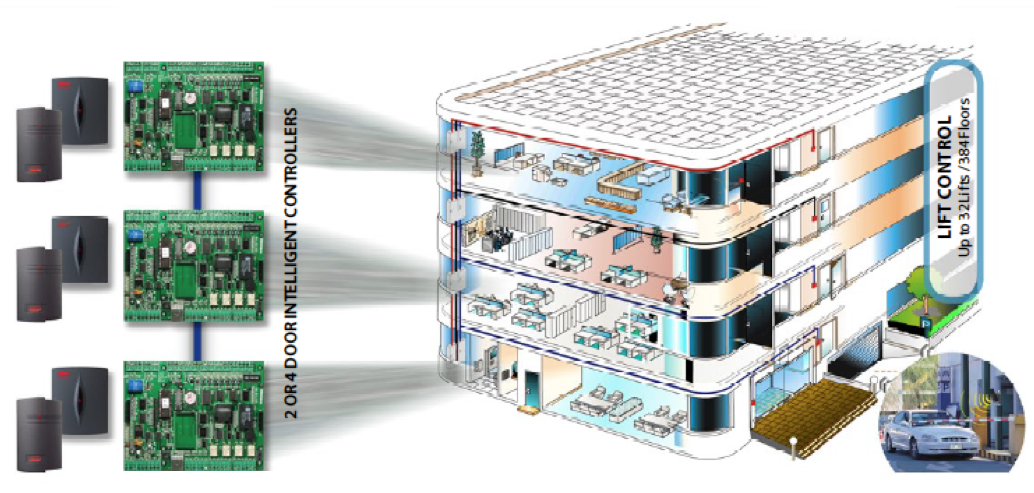

ACCESS CONTROL
The M1 access control option allows arming/disarming and door access via optional prox readers added to M1 keypads or Ness proximity readers interfaced with the system.
RADIO KEYS
Optional radio interfaces provide the convenience of wireless remote control arming and disarming and panic functions as well as wireless motion detectors and other detection devices.
2 WAY VOICE
Listen in and speak via your M1 control from any telephone using the optional 2 way voice feature. For alarm verification, talkback, industrial monitoring and general domestic use.
TELEPHONE CONTROL
Dial in with your mobile phone for easy arming and disarming, operate lights, outputs all with voice feedback.
M1 Features
- Large zone capacity, expandable to 208 zones.
- Two Way Listen-in interface.
- Flash Memory - Allows field updates to firmware.
- RS-232 serial port to interface to Computers and other devices (expandable to 8).
- Time/Date stamped 512 event history log.
- Menu driven keypad programming - no manual required!
- Voice announcement of alarms, zone descriptions, status, etc. *
- 500+ Word/Phrase Vocabulary.*
- Link up to 6 words/phrases per announcement.*
- 10 custom recordable words/phrases.*
- 13 On-Board Outputs: 1 voice driver/siren, 1 siren driver/voltage, 1 Relay, and 10 voltage outputs -expandable to 208 outputs.
- Includes Fire alarm verification routine.
- Can be partitioned into 8 separate areas and accounts.
- 199 User Codes (4 or 6 digit) with assignable authorities.
- Arm levels: Away, Stay, Stay Instant, Nite, Nite Instant,Vacation.
- Plug-in terminals make service and pre-wire simple.*
- Hardware “watchdog” and nonvolatile EEPROM memory.
