PERIMETER

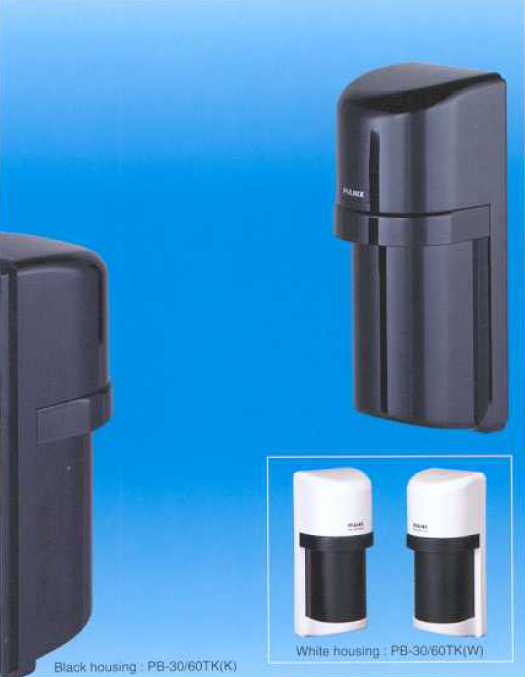

PULNiX "TWIN"

The PULNiX "TWIN" photoelectric beam is designed to meet the highest standards of quality and reliability for photoelectric beam intrusion detection. Unique twin beams are synchronized to work together to reinforce the range and stability in severe weather conditions.
The system has a rotary optical system for easy installation and the special lens design aids in proper alignment.

HIGH RELIABILITY

Synchronized twin beams reduce false alarms
caused by flying birds and falling leaves.

EXTERNAL LIGHT PROTECTION

Trouble-free condition in 50,000 Ix illumination fluctuation is assured by external light compensation circuit a filter, specially designed, that cuts visible rays effectively. Excellent tolerance against sun light, automobile head light, fluorescent light or mercury light.

EASY BEAM ALIGNMENT

The special view finder allows for fast aiming and assures good alignment. Equipped with monitor jack to check sensitivity.

ROTARY OPTICAL SYSTEM

The optical system of both the transmitter and receiver can be rotated a full 180° which allows for side aiming. Therefore the units do not have to be mounted face to face and the beam direction can not be discerned by simple observation.

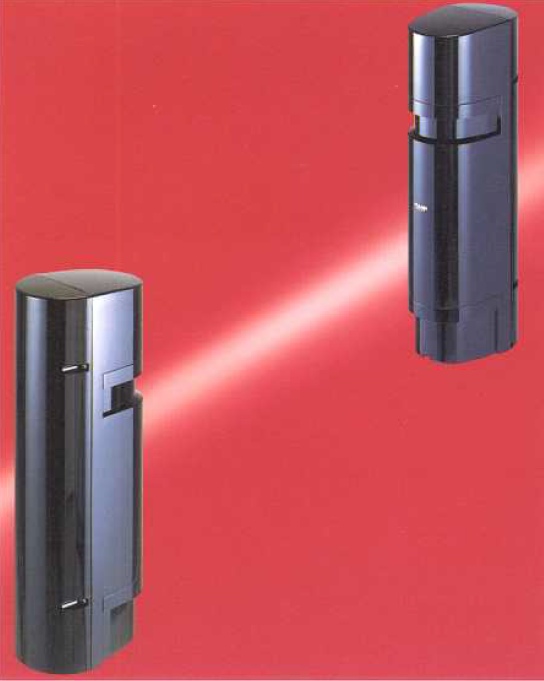

PULNiX Intelligent-Quad

The PULNiX Intelligent-Quad series now has a new member to its product family, the PB-IN-I00AT "Anticrawl" photoelectric beam.
This beam has been designed for high security applications where attempts to crawl through a portion of the photobeam create an alarm event instead of no alarm. Transmitters project double modulated beams that differ in pulse pattern from upper and lower parts. Through CPU processing, the upper receiver selects the beam from the upper transmitter and the lower
receiver selects the beam from the lower transmitter, allowing for an AND-gated or an OR-gated system.

FOUR FREQUENCY SELECTION

4 separate choices of frequency avoids cross-talk in stacked or long linear installations.

DUAL RESPONSE TIME SYSTEM

reBJr.?~red
Two individual response times are provided for
separate adjustment of AND/OR gates. This enables detection of intruders, but minimizes
false alarms.

BEAM TRANSMISSION STRENGTH
SELECTION

2 levels of beam transmission strength which can be set to suit the protection distance.

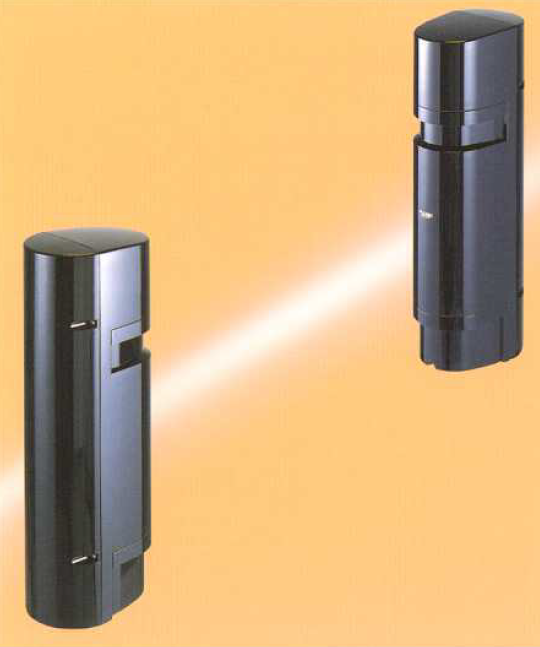

PULNiX intelligent "QUAD"

The PULNiX intelligent "QUAD" photoelectric beam is especially designed for outdoor protection. Unique Quad beams are synchronized to work together to reinforce the
range and stability in severe weather conditions. The PB.IN.HF series beams are equipped with many features which provide a wide choice of field selectable options.
These options result in considerable flexibility for a variety of application requiremen ts.

4 SYNCHRONIZED HIGH POWER INFRARED

4 beams are "and-gated", which helps to prevent false alarms from falling leaves and small animals.
The active infrared transmission is exceptionally strong with a maximum arrival distance ten times greater than the specified protection distance.
External light compensation circuit provides excellent tolerance against sun light, automobile headlight.
